Prowin M4 Hop-up Chamber - TDC Bracket Converter Kit (R-HOP/FLAT-HOP/ MR Maple Leaf)

$14.99
Verkäufer Airtech Studios

Product Description

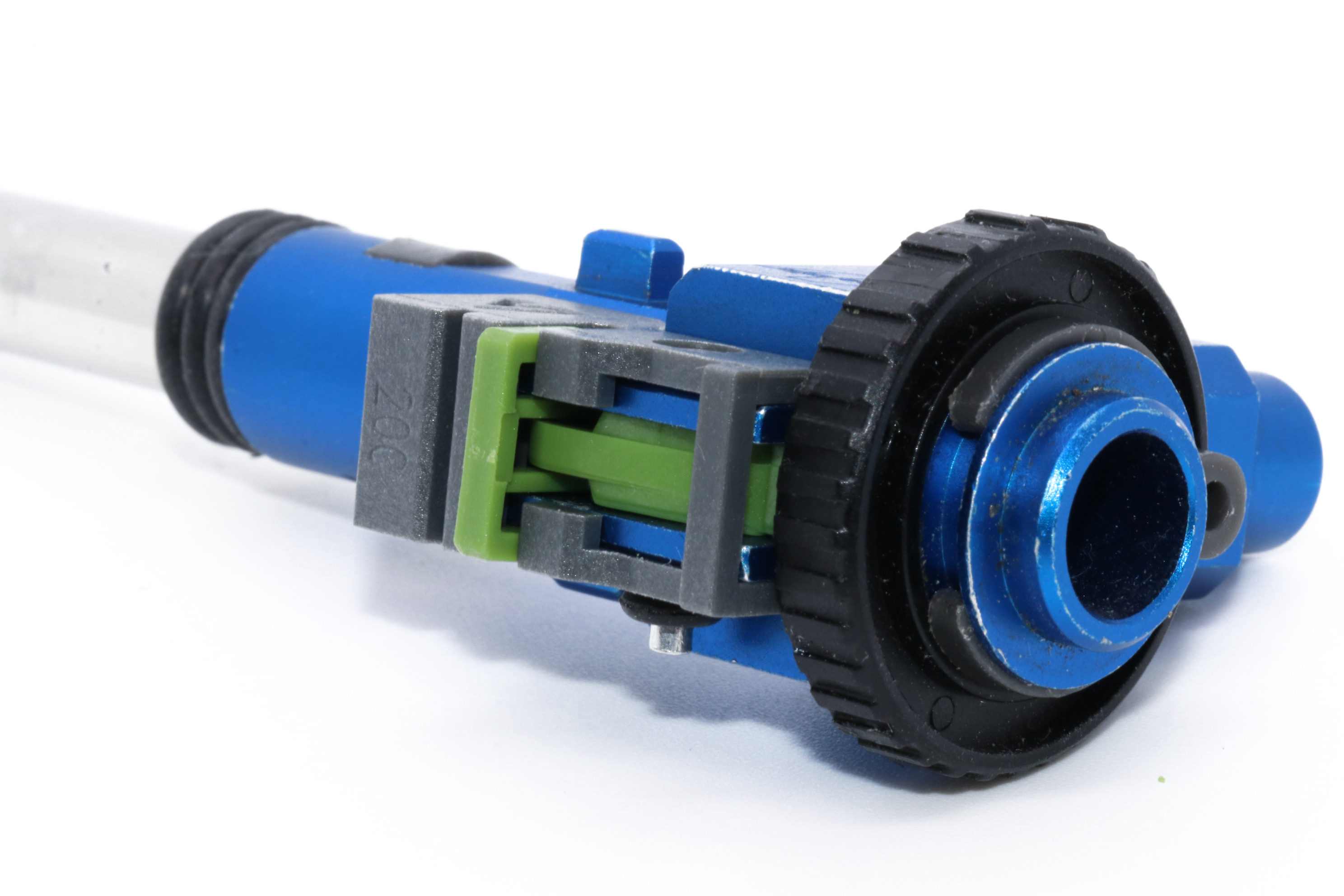

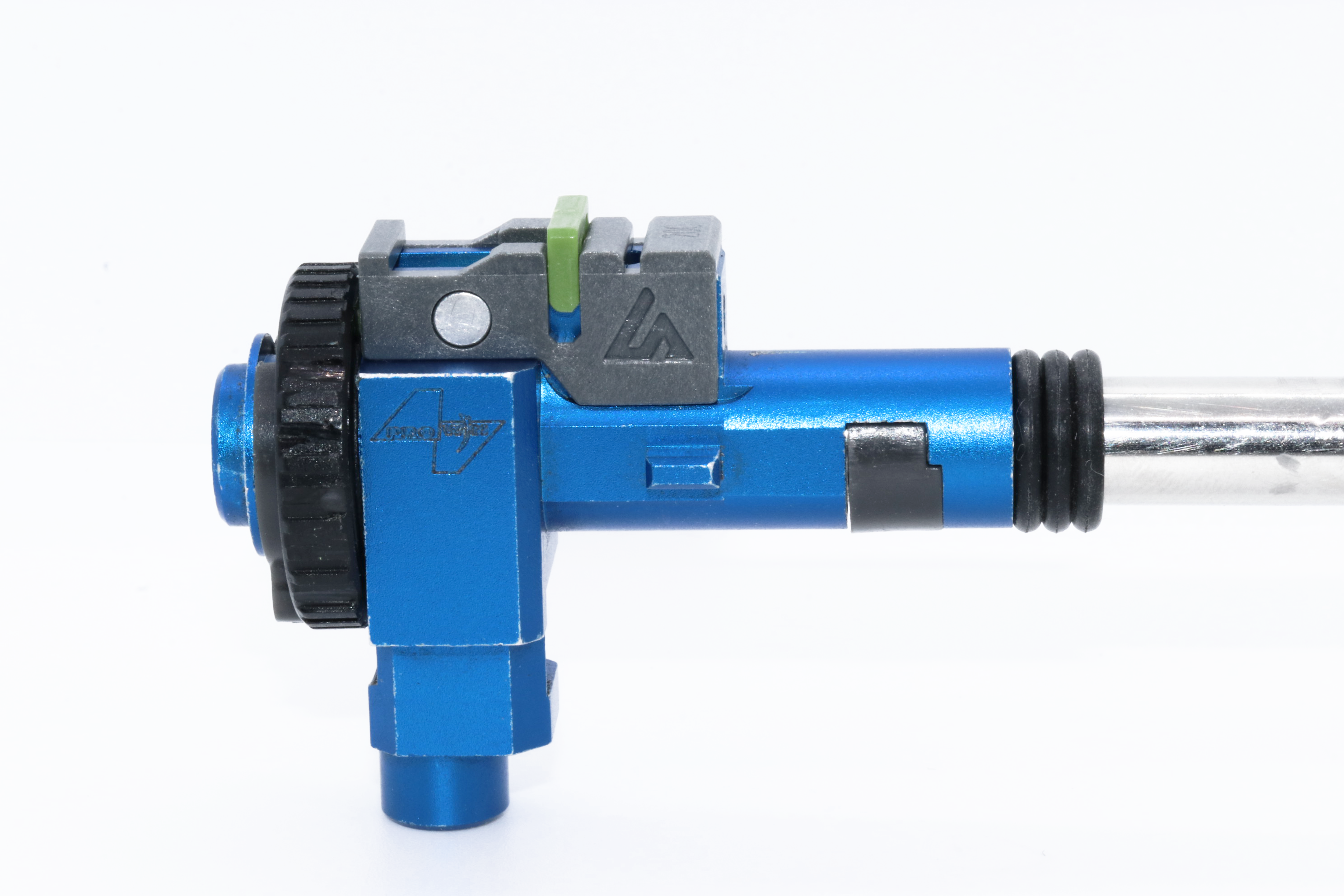

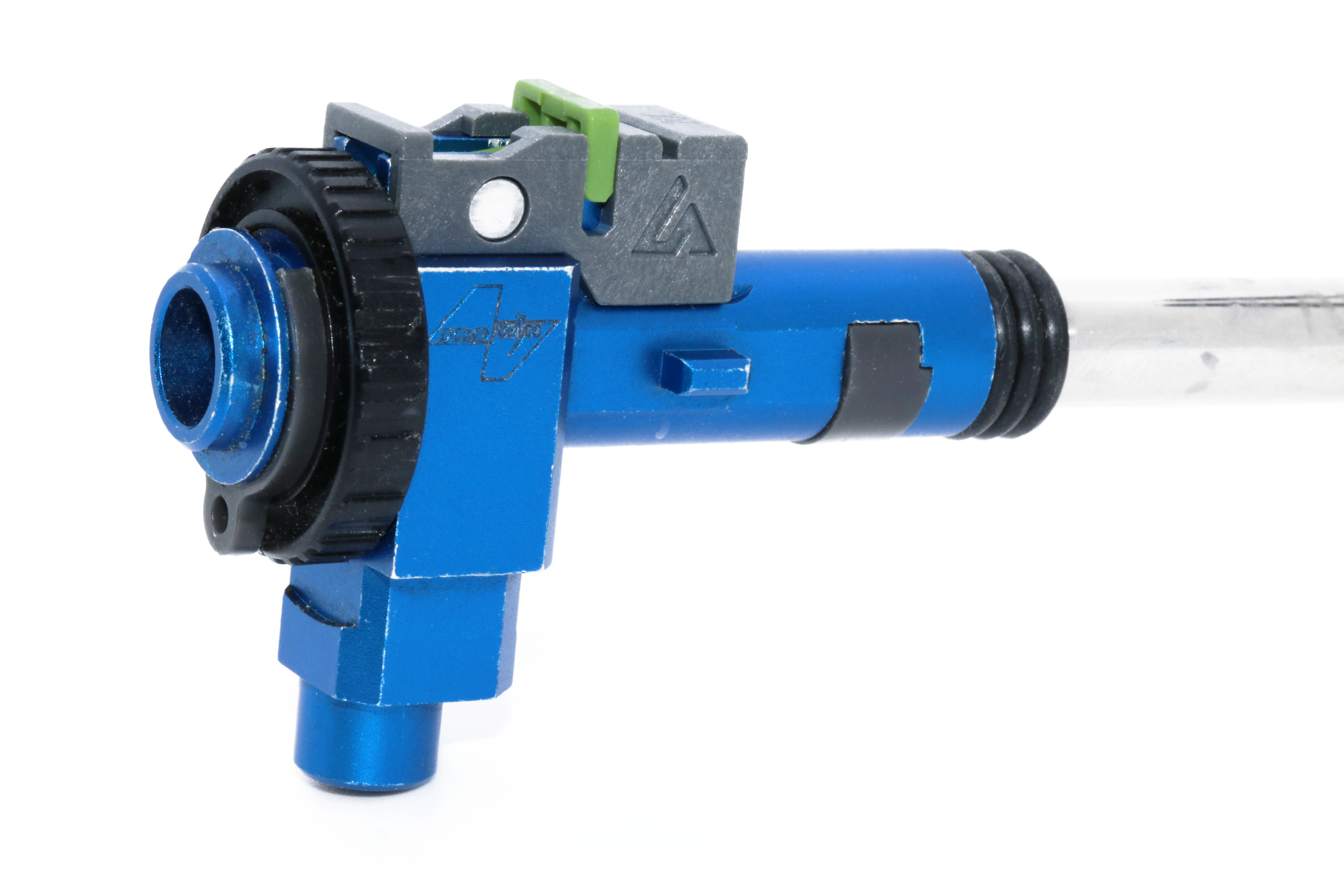

The TDC (Top-Down-Centre) Trolley Converter is designed for the Prowin Rotary Hop-up series to radically upgrade the applicable hop-up inside the stock chamber.

The full installation manual will be provided below to download soon, please follow all steps to ensure a successful install.

For a simple step-by-step installation guide click on the PDF file below.

FAQ Frequently Asked Questions

1. Is the Integration kit difficult to install?
It is fairly simple, We recommend that you have some experience with the hop up units and inner barrel setups. Do download the instruction/ Installation manual

and read all before  beginning the modification process. Consult a gun tech for help if needed or contact us for any help.

2. Do I need an R-HOP patch?
Nope, this works for all types of hop setups, but we do highly recommend R-HOP
buckings

as minimum like the Maple Leaf Macaron buckings to take advantage of the R-hop

performance for long distance shooting with deadly accuracy.

There are many brands of R-hop in the market, much like Psionic, and Silent
Sniper that is easily available in the market as a drop-in patch.

3. Should I upgrade my inner barrel?
It's not necessary as stock barrels are pretty good quality these days and could still function well with the R-HOP builds.

4. How do you remove the bracket once its installed?
It is possible, but not recommended once it is glued into place to prevent further deviations of the setup in the future. It is possible to still service your hop-up chamber and its components for cleaning without removing the TDC converter bracket.

5. Can it work on another hop-up chamber?

This is designed specifically for the Prowin M4 Chamber, but will function on other similiar design of the chamber such as SHS and ZCI, plastic and metal versions

We have other brackets for G&G, KRYTAC, KWA ASG Scorpion Evo, ICS, and VFC, Tokyo Marui NGRS, MTW, Prometheus and Ares Amoeba.

6. What bucking would be the best?
The stock buckings ones are good, but other brands like Prometheus and Modify brands have boundless buckings (without the bump inside)
which are required for R-HOP builds.

Drop-in R-hop buckings like Maple Leaf Macaron are highly recommended.

7. Will this work for Flat-hop?
Yes, it will, and for G-hop too. There are plenty of videos of how-to and what you need for this setup. Once you have this in place, you will notice a huge difference in performance and accuracy.

8. How far can R-HOP travel?
For a 1J setup and the right settings, 0-70m using 0.28g BB

Please refer to the instruction manual for more information. If you need any
further tech help, contact us on info@airtechstudios.com

Types of Hop the Conversion Kit can be used for

The kit may be used in unison with all bucking types and also works perfectly for R-Hop & Flat-hop setups utilizing a trolley system that applies hop perfectly downwards for the most consistent pressure distributed onto the BB. As a result, increased accuracy over longer distances.

Why TDC (Top-Down-Center)?

The idea of using a Top-down-center is a well sought after functionality in airsoft that maximizes the amount of friction allowed onto a BB round and there are third part chambers that can achieve this.  However, switching to a third party chamber could carry a series of risks such as double BB feeding, misfeeding, and inconsistent air compression. That is the reason why we opted for a an upgrade option for the original hop-up chamber that is specifically designed for the G&G CM16 replicas.

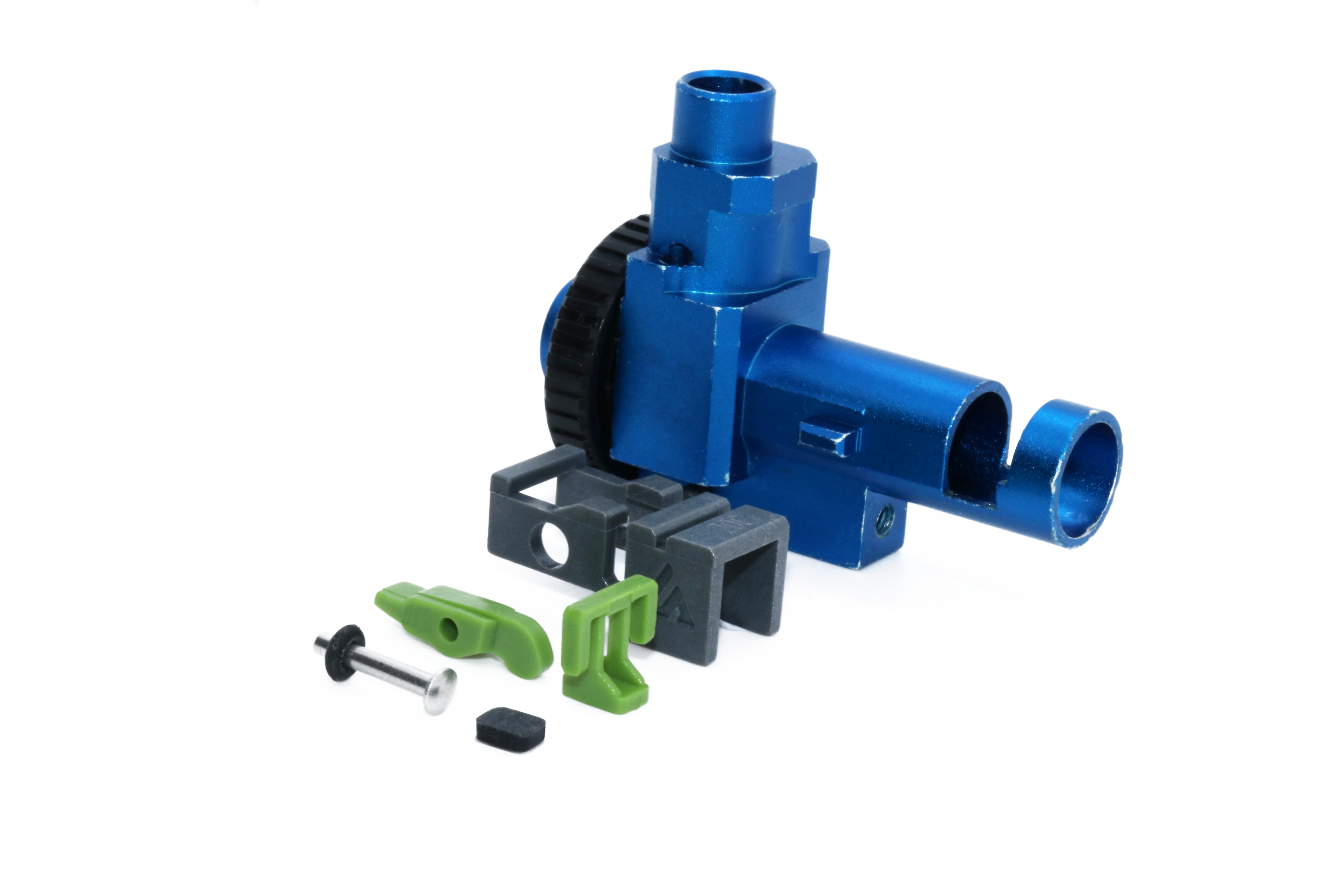

M-Nub
We tested the performance of many types of M-nubs for its firmness, durability, and ability maintain its shape under intense pressure. We settled with a version that ticks all of these boxes. 2x M-nubs are included that covers the length of the hop-up window to maximize the amount of exposure onto the bucking and then BB. This ensures the most stable hop, while the BB accelerates through the hop mound/ Arch.

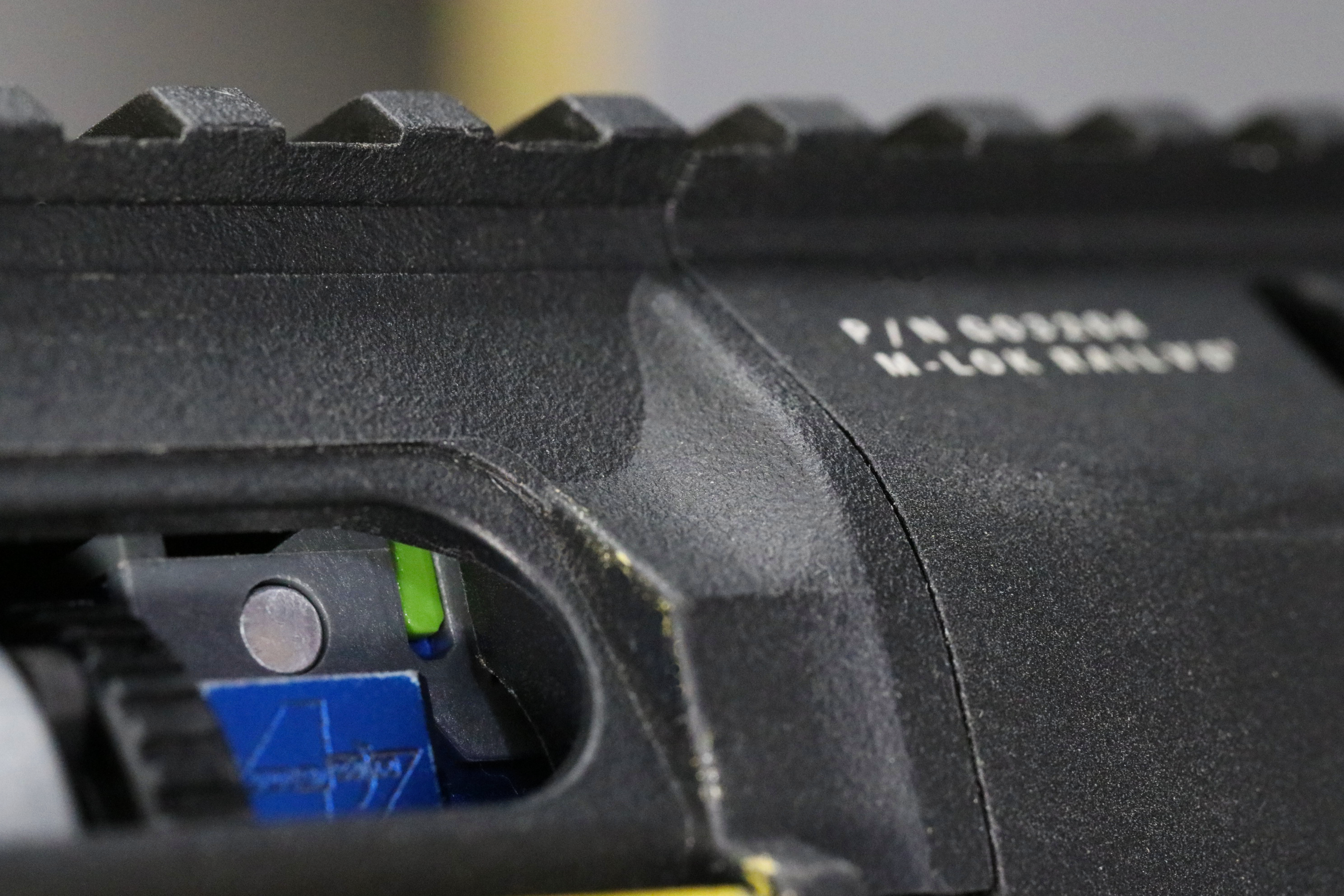

Outer Barrel Modification

Please note that this kit will require modification to the outer barrel of your airsoft replica, however, is straightforward. Full instructions on how to modify will be included in the instruction manual to download. The results are are worth your while!

The full installation manual can be download using the link at the top of the page, please follow all steps to ensure a successful install.

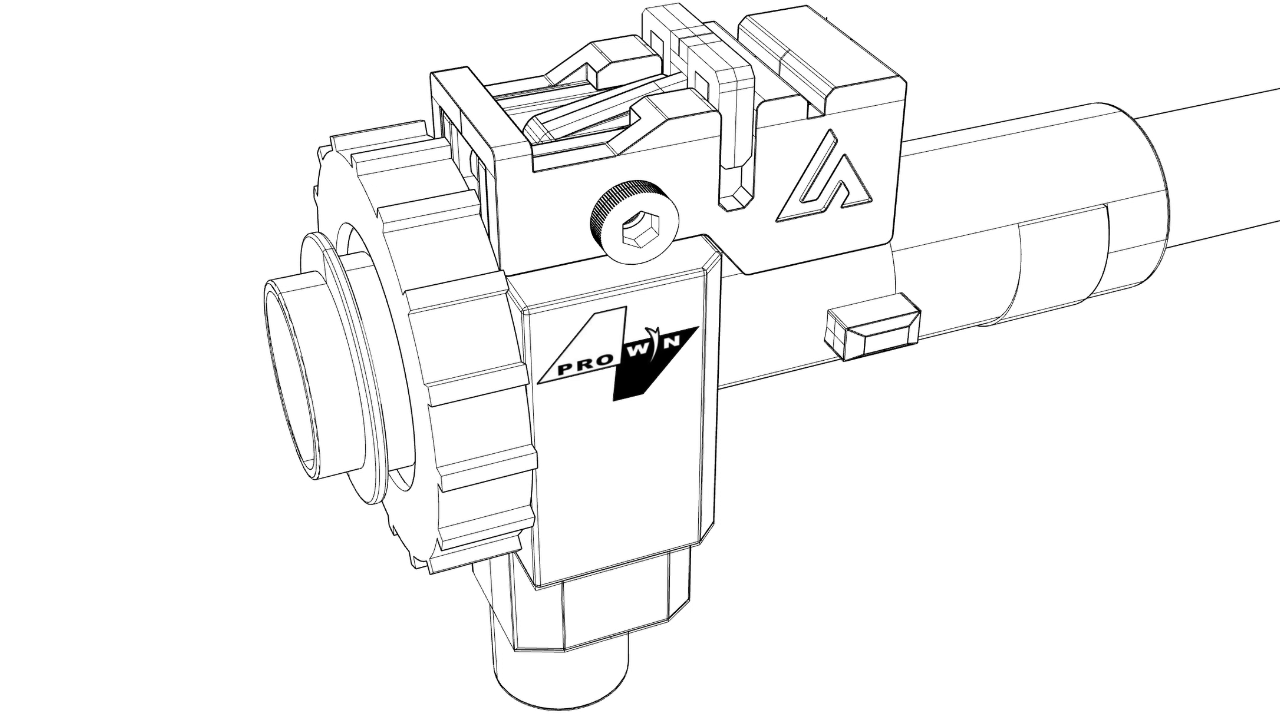

TDC Micro Adjustment

Fine-tune the exact hop-up required for your gun build. The hop applied top to bottom creating the most stable pressure and most exposure onto the BB spin. As a result the most stable and consistent flight patch.
