Tokyo Marui Hop NGRS - TDC Bracket Converter Kit (R-HOP/FLAT-HOP/ MR Maple Leaf)

$14.99
Proveedor Airtech Studios

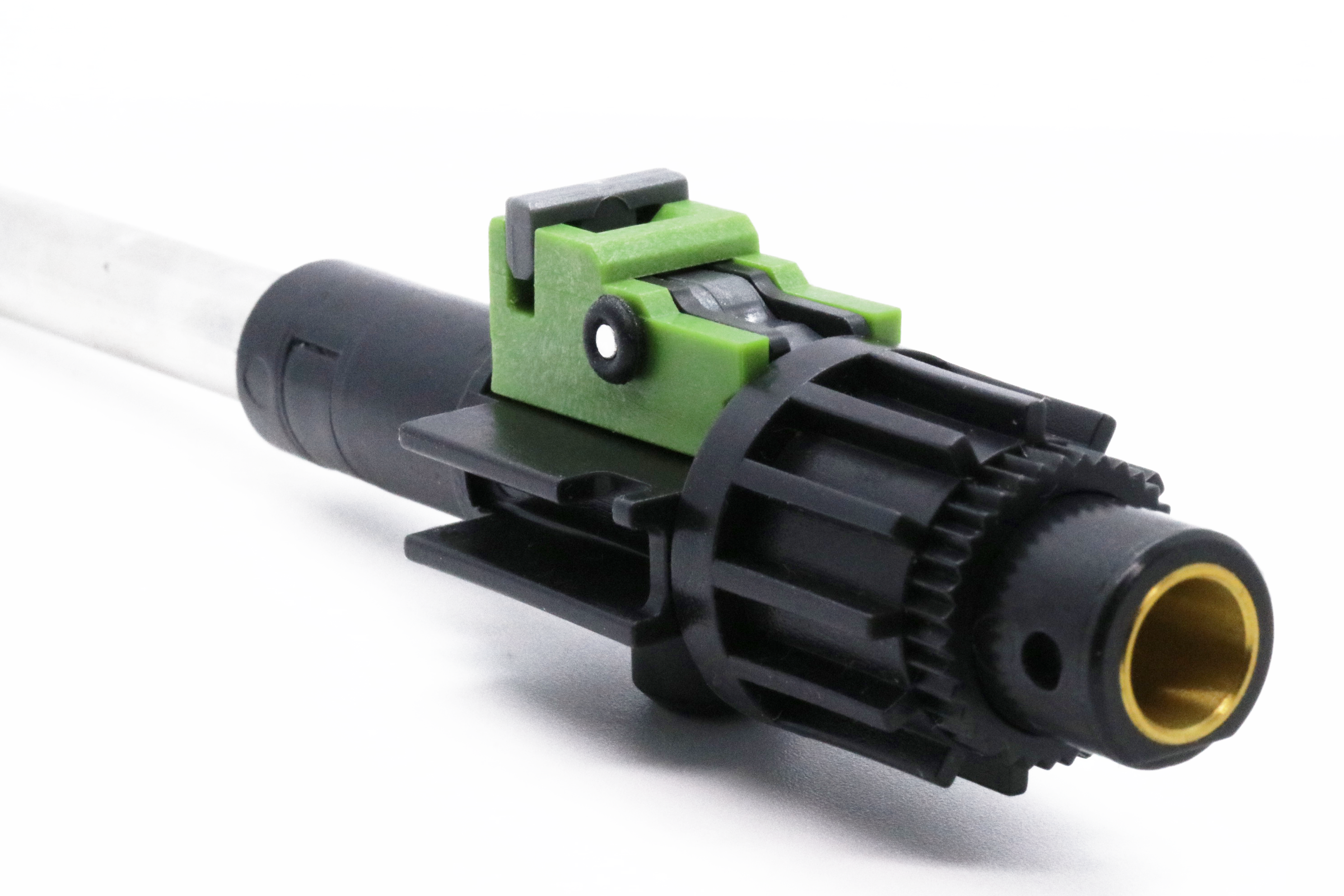

The TDC (Top Down Centre) Trolley Converter is designed for the Tokyo Marui Hop NGRS series to function perfectly for R-Hop and Flat-hop setups using a trolley system that applies hop perfectly downwards for the most consistent pressure distributed onto the BB. As a result, more accuracy over longer distances.

The longer patch would achieve an improvement in accuracy and consistency from shot to shot, typically for sniper DMR builds.

The idea spawned originally from the TDC trolleys found on Maxx Hop-up chambers to achieve a perfect top-down force against the hop-up nubs. So rather than modifying the Tokyo Marui chamber to work that way, we created this converter to be fitted inside the current chamber to function in the same way.


This kit does not require any modifications to any part of the hop-up chamber or part of the Tokyo Marui airsoft replica and an elongated pin is also provided to lock down all of the parts, however, a dab of glue is highly recommended on designed points of the chamber/ TDC kit to ensure there are no unwanted movements later on. The full installation manual will be provided below to download, please follow all steps to ensure you install it correctly.

For a simple step-by-step installation guide click on the PDF file below.

FAQ Frequently Asked Questions

1. Is this difficult to install?

We recommend that you have some experience with R-hop builds before attempting and please download the instruction/ Installation manual before installing. Consult a gun tech for help if needed or contact us for any help.

2. Do I need an R-HOP patch?

Yes, you do or Flat-hop. There are many brands of R-hop in the market, much like Psionic, and Silent sniper that is easily available in the market as a drop-in patch. Alternatively, there are bucking available from companies like Maple Leaf with their macaroon buckings that perform much like a standard R-HOP does.

3. Should I upgrade my inner barrel?

It's not necessary as stock barrels are pretty good quality these days and could still function well with the R-HOP builds.

4. How do you remove the bracket?

It is possible, but not recommended once it is glued into place to prevent further deviations of the setup in the future. It is possible to still service your hop-up chamber and its components for cleaning without removing the TDC converter bracket.

5. Can it work on another hop-up chamber?

No. This is designed specifically for the Tokyo Marui NGRS (M4 Platform only). We have other brackets for Krytac, Prowin, KWA, ICS, and VFC.

6. What bucking would be the best?

The stock Tokyo Marui ones are good, but other brands like Prometheus and Modify brands have boundless buckings (without the bump inside) which are required for R-HOP builds.

7. Will this work for Flat-hop?

Yes, it will, and for G-hop too. There are plenty of videos of how-to and what you need for this setup. Once you have this in place, you will notice a huge difference in performance and accuracy.

8. How far can R-HOP travel?

For a 1J setup and the right settings, 60-70m using 0.28g BB

*Please note the Tokyo Marui hop-up chamber is not included - this is a specific TDC upgrade made FOR the existing Toyko Marui NGRS Chamber*

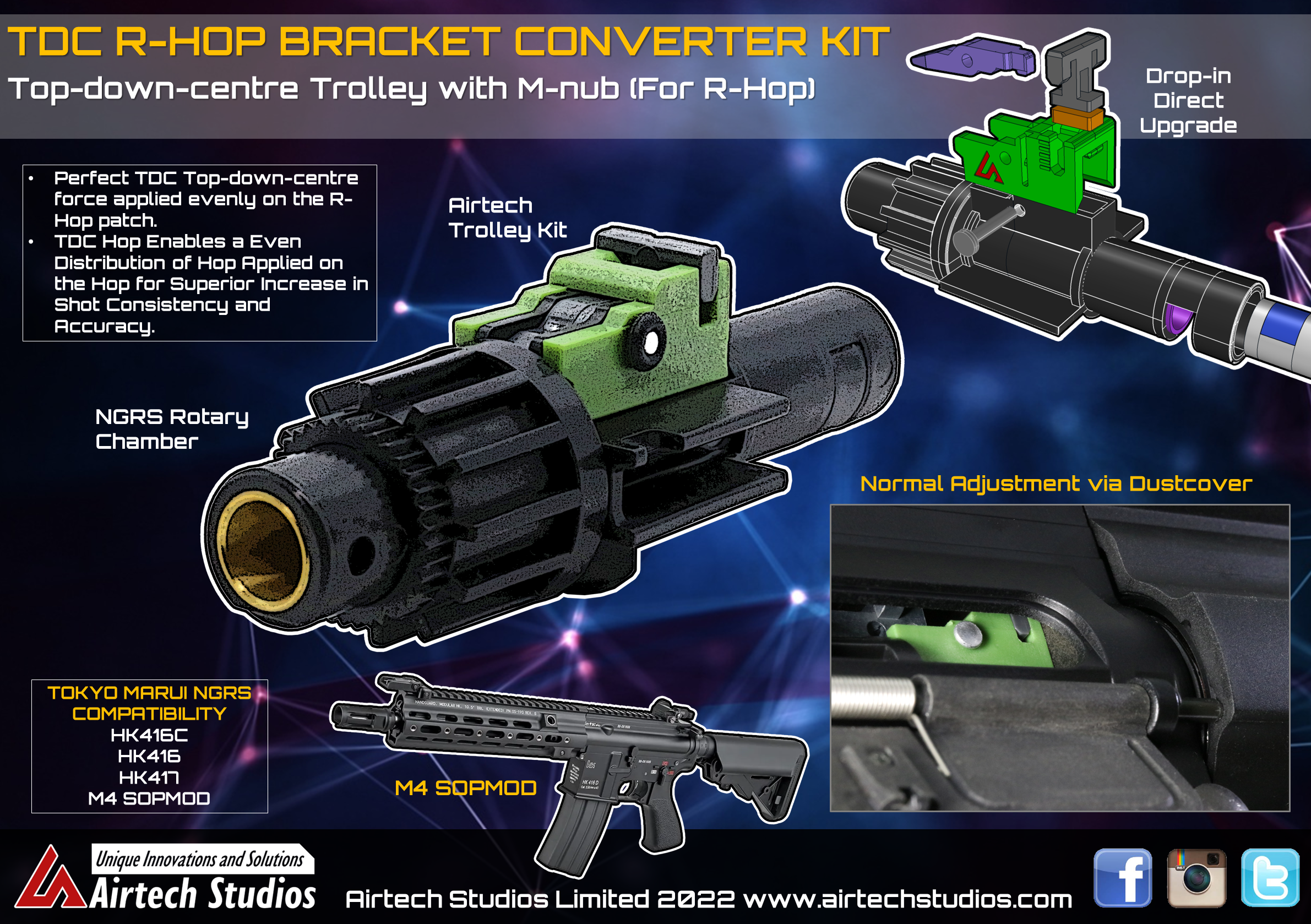

The most desirable set up

Perfect Top-Down-Center Hop

Once installed you can obtain the fully functional TDC hop alongside the advantages of keeping the original hop-up unit designed for the gun which can prevent situations like misfeeding or double feeding.

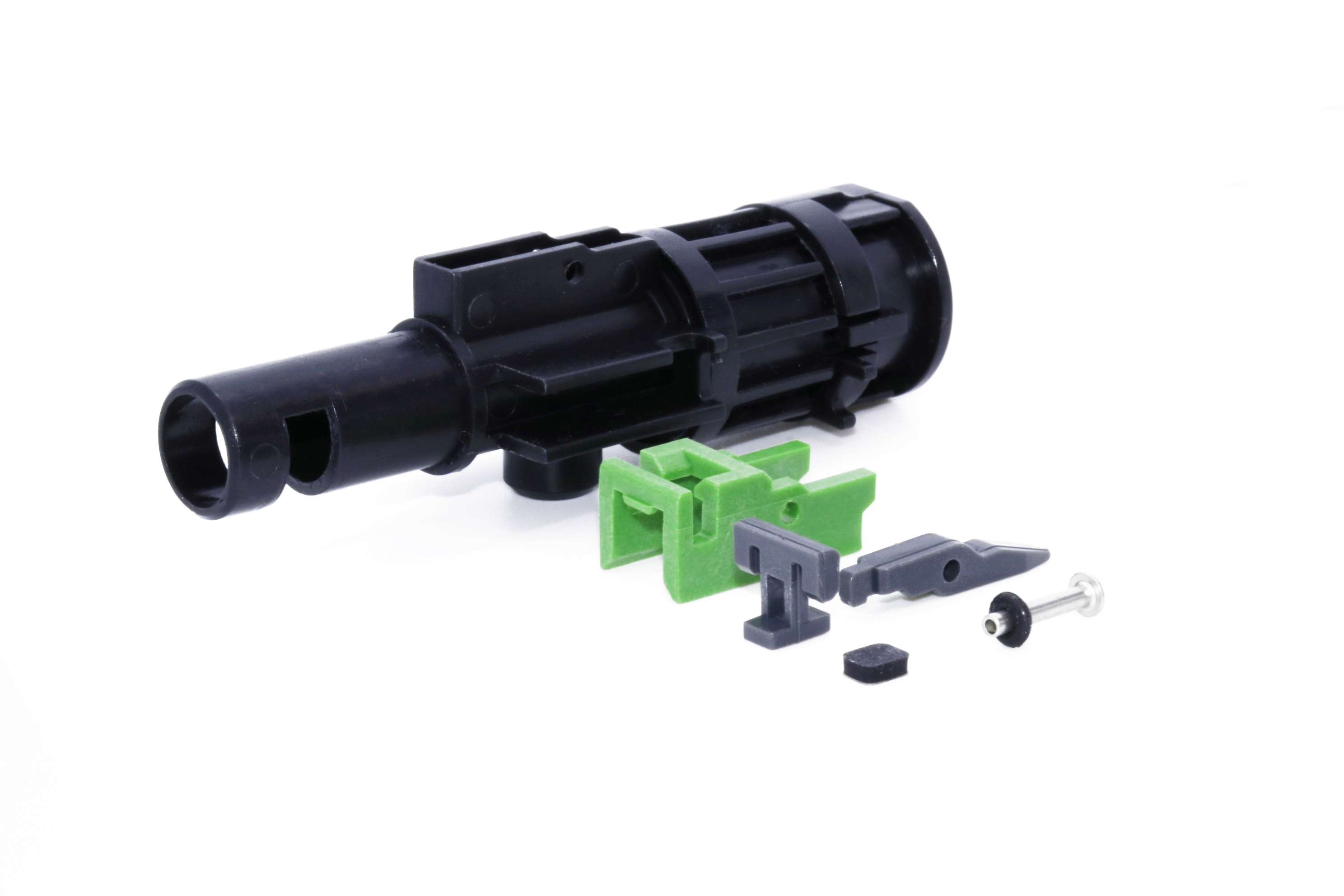

Part 1

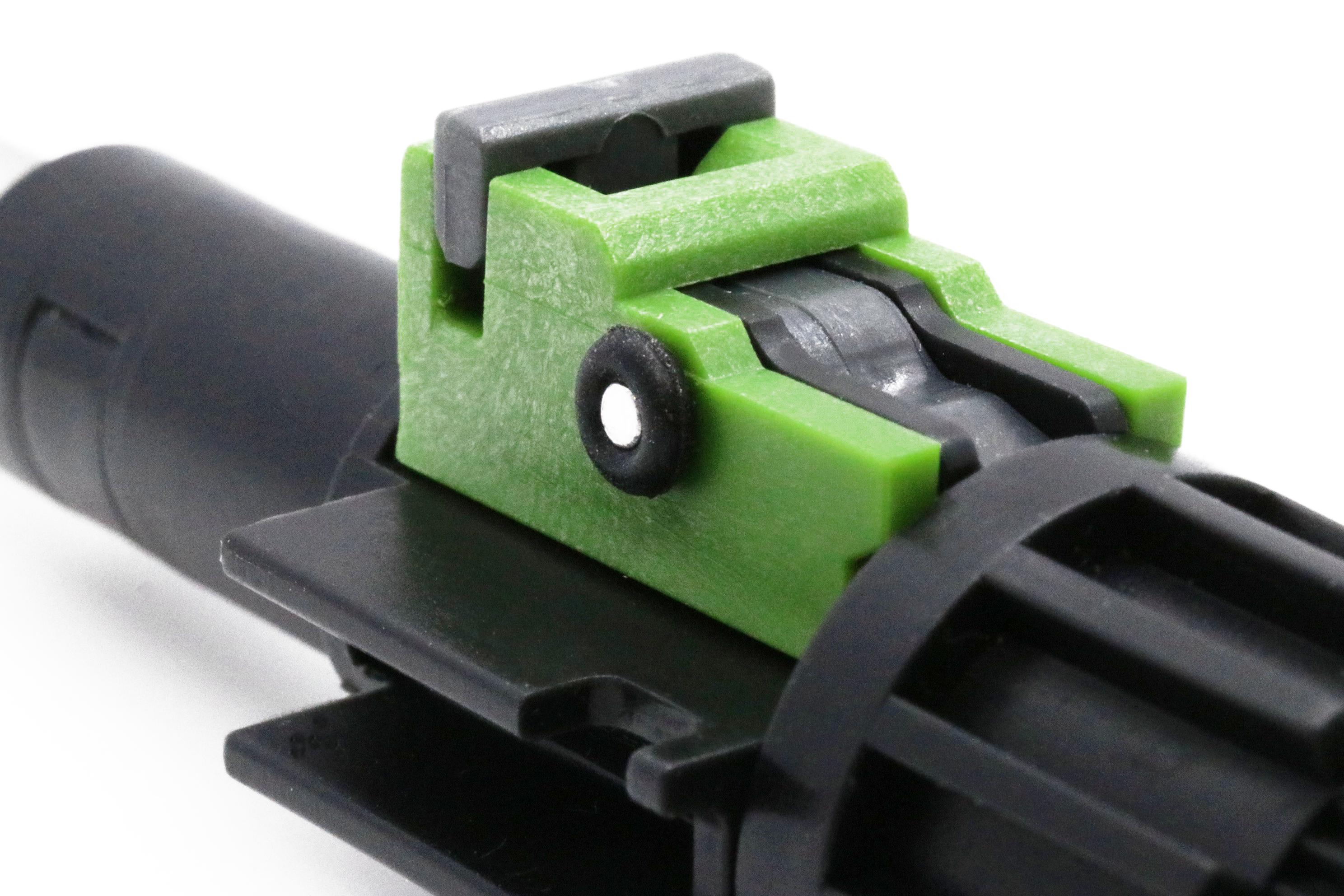

The TDC Bracket

The main bracket: This fits onto the original Tokyo Marui hop-up chamber and acts as a medium to guide the trolley moving vertically up and down to apply hop-up. It is designed to restrict the movement of any other axial directions, and limit only on the vertical axis.
Part 2

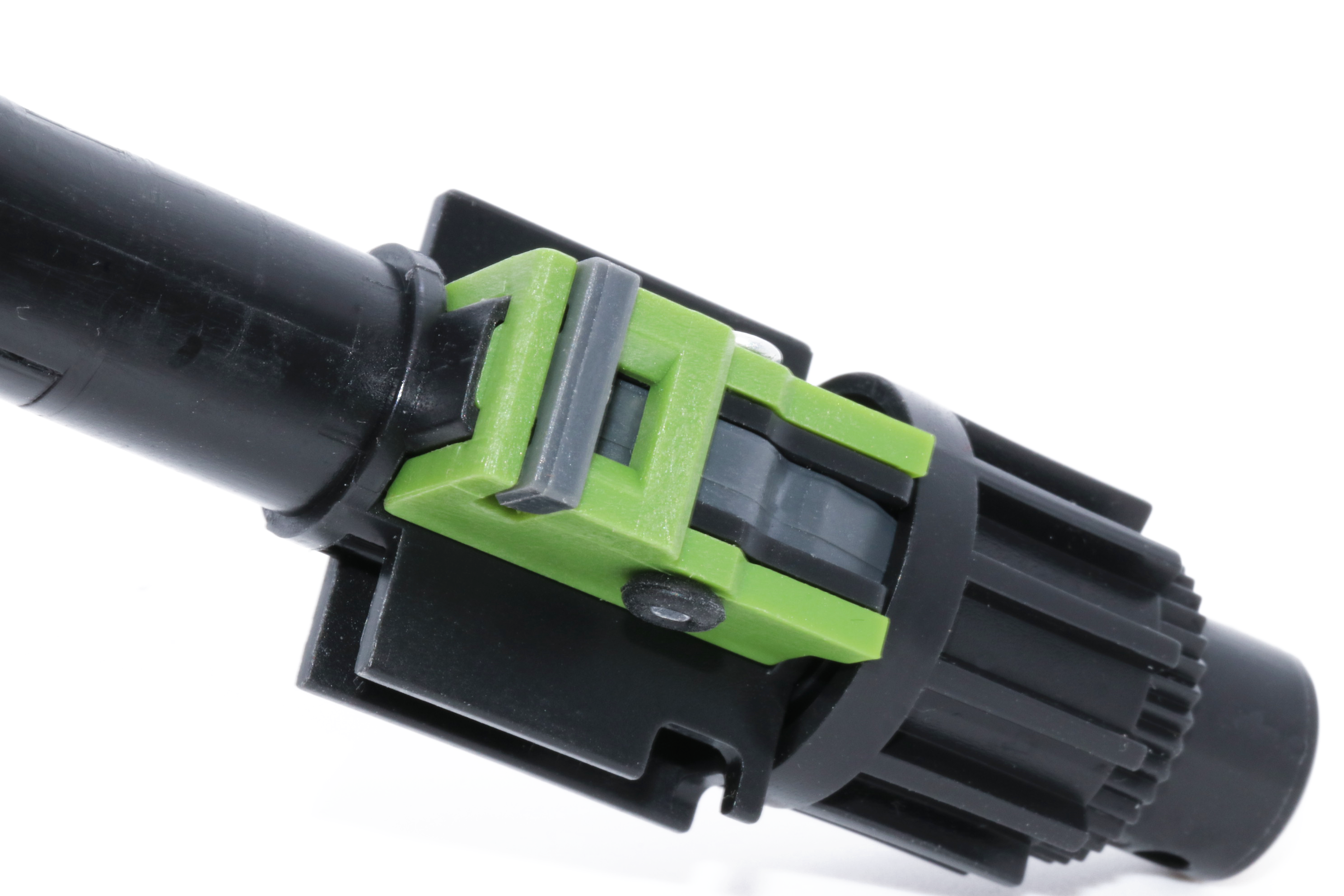

The Vertical Trolley

The trolley is fitted inside of the bracket and can only move up and down the vertical axis controlled by the bracket while using the walls of the original chamber to prevent the trolley from swaying left and right.
Part 3

The M-nub

The M-nub ensures an evenly distributed force is applied onto the bucking down to the RHOP patch. This in turn ensures the patch can maximize its appliance on the BB for the most stable and uniform spin for the much desired R-hop performance. This is stuck onto the trolley via a strong 3M sticker.
Part 4

Modified Hop-up Arm

Lastly the modified arm is used to apply the desired force onto the trolley and then the R-HOP patch.
Installation Demo

TDC Convertor for KWA TK45 Tekken

Reproducir
A Step ahead of others

Gain the Competitive Edge

This kit does not require any modifications to any part of the hop-up chamber or part of the Tokyo Marui airsoft replica and an elongated pin is also provided to lock down all of the parts, however, a dab of glue is highly recommended on designed points of the chamber/ TDC kit to ensure there are no unwanted movements later on.

Ultra-Tough Polycarbonate

The TDC Kit is manufactured through plastic injection molding using polycarbonate as the material which is lightweight and tough against the stresses while installed into the hop-up chamber.
Get your tech hats on

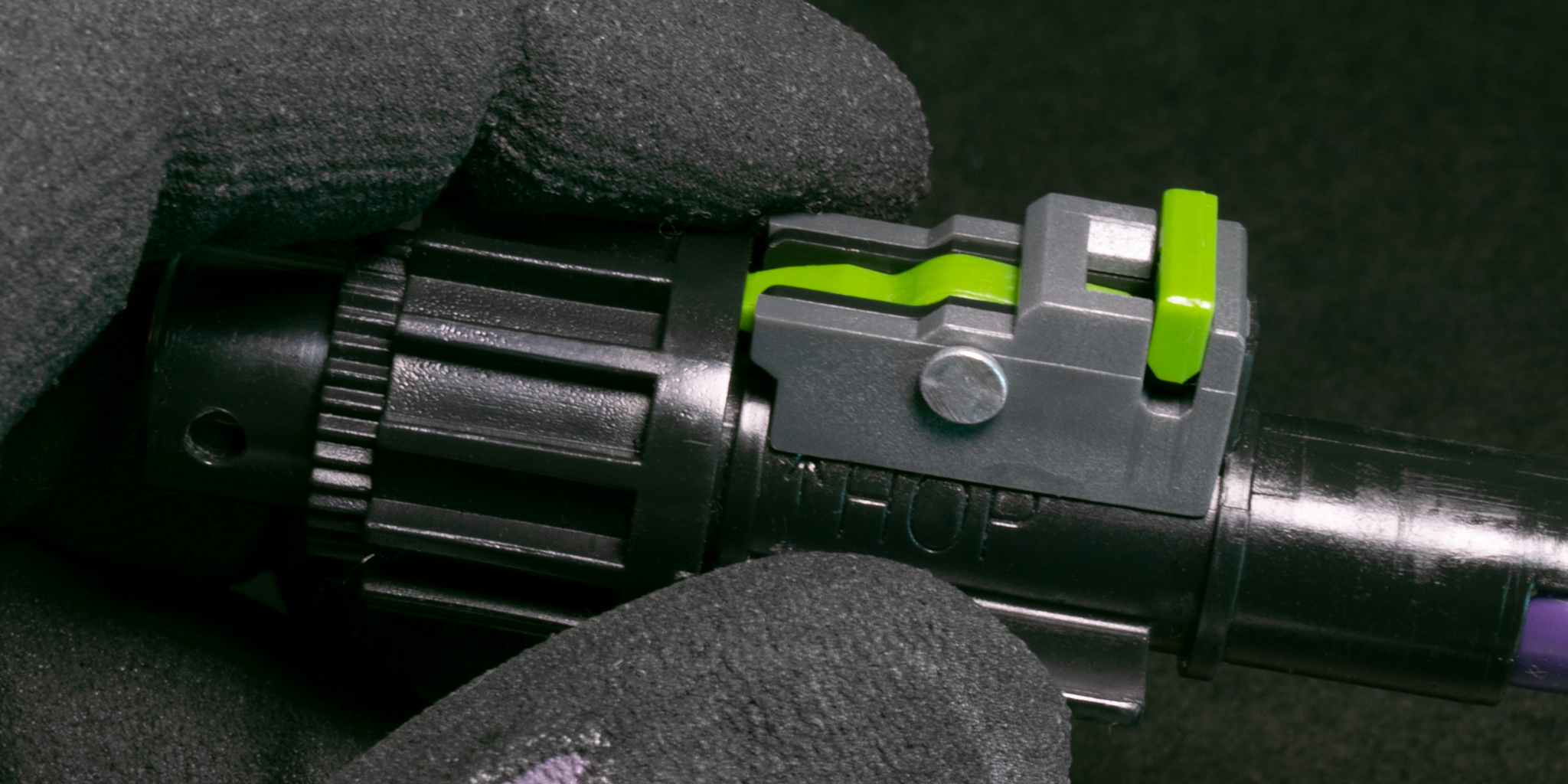

Tech Work For Successful Install

Once you have tested the hop up works on your set up. Use the Zip tie (supplied with the kit), to lock the TDC kit into place. Do not over tighten – a firm amount is only required. Leave for 12 minimum and/or 24 hours to fully cure (dry). This is ensure there are no shot to shot inconsistencies so is highly recommended to do this step.

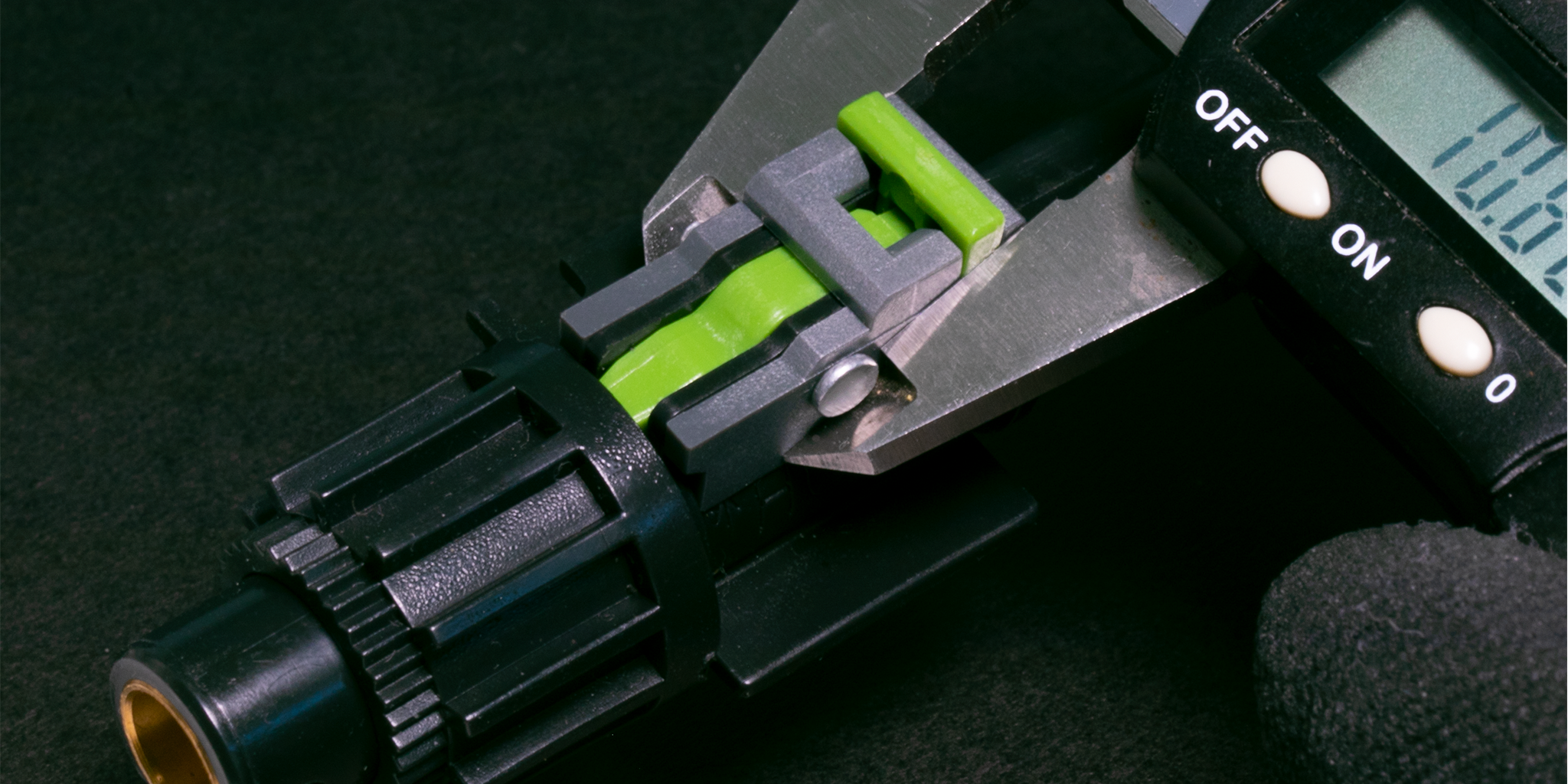

Precision Manufacturing
