Full Upgrades Bundle Kits for: Maxx Model Hop-up Chamber (all New Gen)

$24.99

Product Description

This the is ultimate kit to take your Maxx Model hop-up chamber to the next level of upgrades. There are 3 crucial parts of this kit that will upgrade the hop up chamber that is essential to gain the best accuracy - shot to shot consistency and balanced FPS output!

The pack includes the following core upgrades (all of which can be purchased separately, but we made this kit bundle together to offer a better value for money to get your upgrades started!)

  • True Centering Unit
  • Inner Barrel Lock
  • TDC Trolley

Full step-by-step installation can be downloaded using this link CLICK HERE TO DOWNLOAD

FAQ Frequently Asked Questions

Advanced Locking

1. Is this difficult to install?

Not at all, you are simply replacing the current brass ring with our advanced ring that will fill in the gaps more inside the hop up chamber to lockdown the inner barrel.

2. Can any barrel be used with this?

Yes, the advanced locked is designed at an angle so that it would latch on to the any inner barrel x Maxx chamber securely.

3. What is the point of the locking ring?

In general, anything that most in airsoft must be locked down and centered for the most efficient and accurate shot. You will be eliminating a variable that would have caused bad shots before.

4. Can this locking ring be used on other Maxx Model chamber?

It can only be used on the Maxx new gen versions. We have a advance locking ring made for the older gens thats available too.

5. Can it be used on other non Maxx Model brand hop up chamber?

Not likely but we have a universal version made already and other more specific versions per brand like Krytac, Prowin, G&G, ICS, KWA etc.

TCU True Centering Unit

1. Is it difficult to install the TCU?
Part A, the side wings is simple. However for the best results it is best to remove the outer barrel to determine which of the side wings fits the best.

For Part B. It is optional however slight modification/ sanding may be required.

2. Can this work on the older Gen Maxx Model chamber?

Nope, this is for the New Gens only. We do have version made for the older generations though that you can check out on our website.

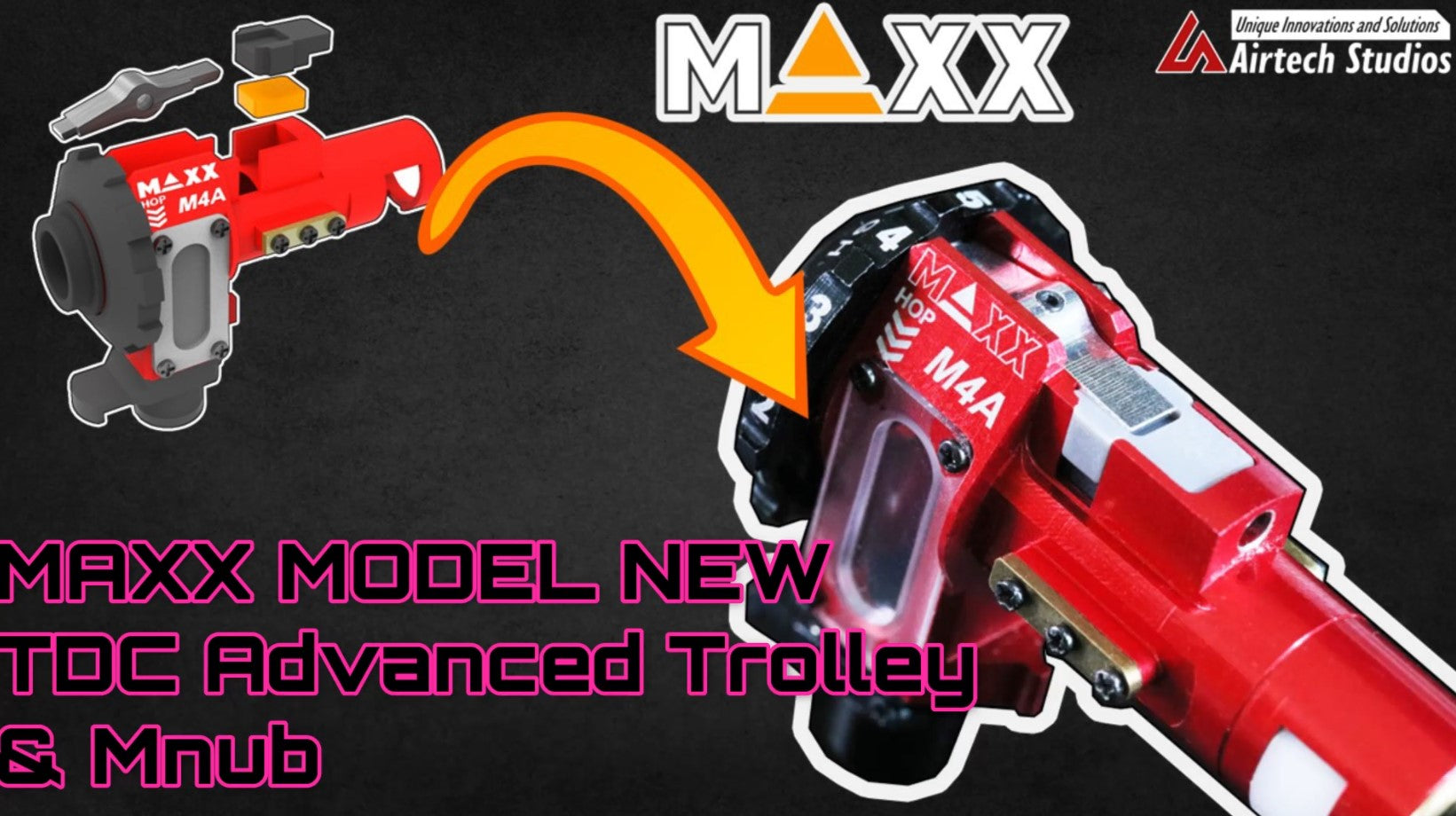

Advanced TDC Trolley

1. What is the difference between the original trolley and this?

We extended the length of the trolley from 3.8mm originally to 5mm to cater for a wider spectrum of inner barrels in the market.

2. What if I dont need the full 5mm length?

Thats ok, you can install the M-nub and when its pushed down it it will apply the required top-down pressure onto the bucking and BB.

3. What if i need exact M-nub size?

2x M-nubs are provided so you cut the length to size by a exacto knife to the precise size you need.

4. Can this be used on all Maxx Model hop up units?

Only the new gen. If you need it for the older version, we have that too on our website.

There are three core parts of the upgrades to the Maxx Model Chamber. Installing each one successfully will increase the shooting performance of the installed gun. Refer to the instruction manual for a step by step guide for installation.

True Centering Unit
1 x True Centering Unit (TCU) - (M4W & MXW TCU is not compatible. Side Wings Only)
1 x TCU Lock
1 x Spring Lock
2 x 2.5mm Side Wings
2 x 2.6mm Side Wings
2 x 2.8mm Side Wings

Inner Barrel Lock
1 x Inner Barrel Locking Ring
5 x Silicone Installation Rings

TDC Trolley
1 x TDC Trolley Unit
2 x M-nub

COMPATIBILITY for all the New Gen Maxx Model Chambers
✔ M4A
✔ M4E & M4Ei
✔ M4G & M4Gi
✔ M4i
✔ M4P
✔ M4W
✔ MGW
✔ MXW
