G&G CM16 Rotary - Top-Down-Center (TDC) Bracket Integration Kit
*Pre-Orders Available now - Product Launch March 2024*

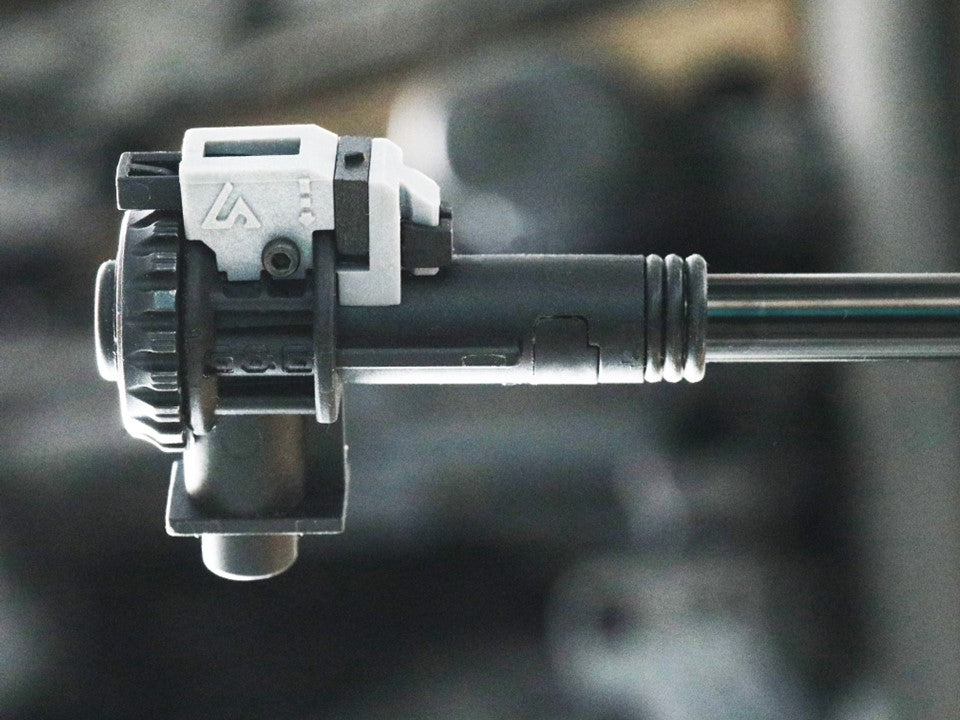

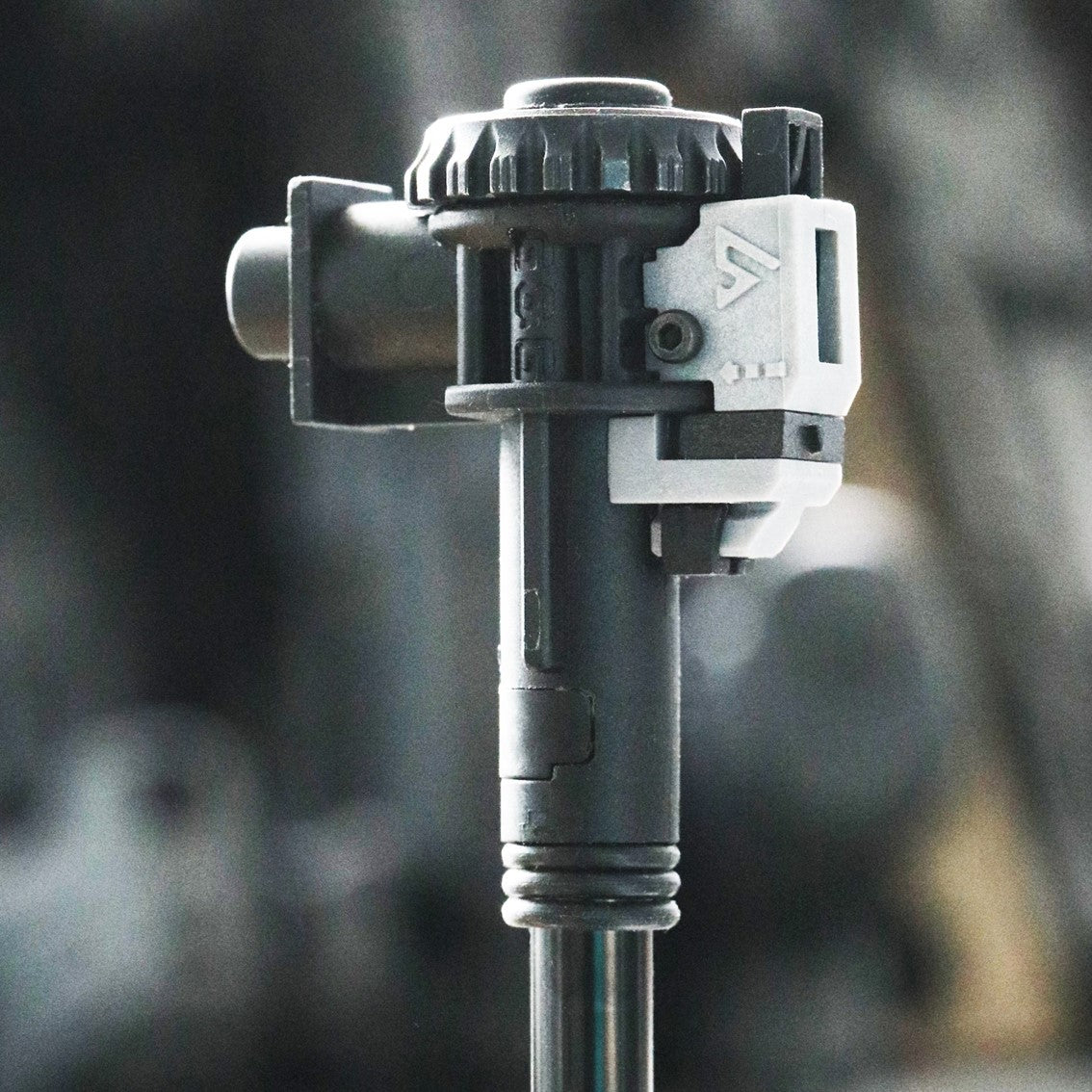

The TDC (Top-Down-Centre) Trolley Converter is designed for the G&G CM16 (M4) Rotary Hop-up series to radically upgrade the applicable hop-up inside the stock chamber.
It may be used in unison with all bucking types and also works perfectly for R-Hop & Flat-hop setups utilizing a trolley system that applies hop perfectly downwards for the most consistent pressure distributed onto the BB. As a result, increased accuracy over longer distances.
The idea spawned originally from the TDC trolleys found on Maxx Model Hop-up chambers to achieve a perfect top-down force against the hop-up nubs. However, switching to a third party chamber could carry a series of risks such as double BB feeding, misfeeding, and inconsistent air compression, we opted for a an upgrade option for the original hop-up chamber that is specifically designed for G&G models.
A M-nub is included that covers the length of the hop-up window to maximize the amount of exposure onto the bucking and then BB. This ensures the most stable hop, while the BB accelerates through the hop mound/ Arch.
Please note that this kit will require modification to the outer barrel of your airsoft replica, however, is straightforward. Full instructions on how to modify will be included in the instruction manual to download.
The full installation manual will be provided below to download soon, please follow all steps to ensure a successful install.
FAQ Frequently Asked Questions
1. Is this difficult to install?
We recommend that you have some experience with R-hop builds before attempting and please download the instruction/ Installation manual before installing. Consult a gun tech for help if needed or contact us for any help.
2. Do I need an R-HOP patch?
Yes, you do or Flat-hop. There are many brands of R-hop in the market, much like Psionic, and Silent sniper that is easily available in the market as a drop-in patch. Alternatively, there are bucking available from companies like Maple Leaf with their macaroon buckings that perform much like a standard R-HOP does.
3. Should I upgrade my inner barrel?
It's not necessary as stock barrels are pretty good quality these days and could still function well with the R-HOP builds.
4. How do you remove the bracket?
It is possible, but not recommended once it is glued into place to prevent further deviations of the setup in the future. It is possible to still service your hop-up chamber and its components for cleaning without removing the TDC converter bracket.
5. Can it work on another hop-up chamber?
No. This is designed specifically for the Tokyo Marui NGRS (M4 Platform only). We have other brackets for Krytac, Prowin, KWA, ICS, and VFC.
6. What bucking would be the best?
The stock Tokyo Marui ones are good, but other brands like Prometheus and Modify brands have boundless buckings (without the bump inside) which are required for R-HOP builds.
7. Will this work for Flat-hop?
Yes, it will, and for G-hop too. There are plenty of videos of how-to and what you need for this setup. Once you have this in place, you will notice a huge difference in performance and accuracy.
8. How far can R-HOP travel?
For a 1J setup and the right settings, 60-70m using 0.28g BB
*Please note the Tokyo Marui hop-up chamber is not included - this is a specific TDC upgrade made FOR the existing Toyko Marui NGRS Chamber*
